SMC

SMC

Sheet Molding Compounds,the sheet molding compound. The main raw materials are composed of GF (special yarn), UP (unsaturated resin), low shrinkage additives, MD (filler) and various additives.


One-time compression molding at high temperature

One-time compression molding at high temperature

High mechanic strength

High mechanic strength

Material has a light specific gravity

Material has a light specific gravity

High integration

High integration

corrosion preventive

Corrosion preventive

High insulation strength

High insulation strength

Excellent flame retardant performance

Excellent flame retardant performance

Flexible product design

Flexible product design

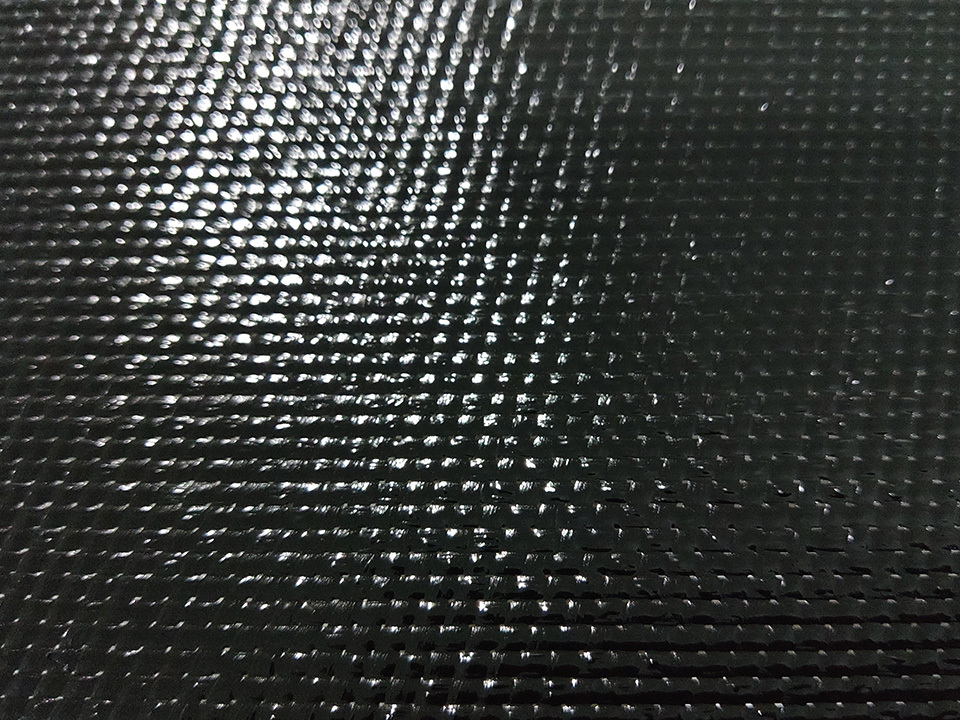

Polyurethane Prepreg

Polyurethane prepreg is a combination of two-component polyurethane resin impregnated with continuous fiber and its fabric under strictly controlled conditions. It is an intermediate for the manufacture of advanced composite materials.

Product process:
Cut the polyurethane prepreg according to the shape and size of the product, spread the shape of the product on the model, and place it on the mold for compression molding.


High accuracy of product dimensions

High accuracy of product dimensions

Has a certain degree of adhesion

Has a certain degree of adhesion

Excellent effect and high quality

Excellent effect and high quality

The production environment is clean and tidy, basically no VOC emissions

高集成性

Low one-time investment

Low one-time investment

Short molding cycle

Short molding cycle

Good secondary processing performance and weather resistance

Good secondary processing performance and weather resistance

Good mechanical properties

Good mechanical properties

Polyurethane Prepreg
LFT

LFT

LongFiber Reinforced Thermoplastics-Direct

Cut glass fiber with the equipment and gently mix it into the molten polypropylene, and then directly put it into the mold for compression. We will also add different additives as required by customers so that the products can meet the performance requirement of customers.


Highly automotive

Highly automotive

High production efficiency

High production efficiency

Large fiber length

Large fiber length

Rapid adjustment of formula ratio;

Rapid adjustment of formula ratio;

LWRT

Low-weight reinforced thermoplastics, a sheet made of glass fiber needled felt as a reinforcing material and polypropylene composite.

Product process:
1. Put the LWRT sheet in an electric oven, the temperature is controlled between 200-220℃, and the time is 50-70 seconds, and the LWRT sheet is heated and softened;
2. Stack the baked LWRT sheets in the mold, and then close the mold, the pressure is set at 0-200T, and the time is 20-40s.


Excellent sound absorption performance

Excellent sound absorption performance

Small investment in molds and presses

Small investment in molds and presses

The upper and lower surface covering materials can be customized

The upper and lower surface covering materials can be customized

For irregular products, the material utilization rate is very low

For irregular products, the material utilization rate is very low

LWRT
GMT

GMT

GMT:Glassfiber mat reinforced thermoplastics,It is a kind of sheet compounded with modified polypropylene and glass fiber needle taken as the reinforcement material.
1. Preheat the cut sheet (3-8min). The internal temperature is required to be greater than 190°C and the surface temperature is not greater than 240°C. The preheating can be done by infrared ray or air convection.
2. The preheated sheet is put into the mold cavity within 15s in a temperature range of 40~60℃, then compound the mold immediately. The molding pressure is 15-25MPa, and the molding cycle is 1~2min.


Free design

Free design

High impact resistance

High impact resistance

Recyclable.

Recyclable.

High strength and high rigidity

High strength and high rigidity
